Mazda 6 Dashboard Symbols and Meanings: What Each Light Means
By the CarsDailyHub Editorial Team | Automotive writers; every article fact-checked against Mazda’s owner’s manual and OEM service documentation | Updated June 2026
Quick Answer: The lights that mean stop driving now on a Mazda 6 are the red engine coolant temperature light, the red oil pressure light, the red battery (charging) light, and the red brake warning light. Amber lights such as check engine, DSC (stability), ABS, and the master warning triangle mean the car is still drivable but needs attention soon. A flashing check engine light is an active misfire, treat it like a red light and get to a shop the same day.
This guide covers dashboard symbols for the 2013-2021 Mazda 6 (third generation) with Skyactiv engines. Specifications reference Mazda’s owner’s manual and OEM service documentation. Last reviewed: June 2026.
Table of Contents
- How Mazda 6 Dashboard Lights Work (Color Logic)
- Complete Mazda 6 Warning Light Table
- Red Warning Lights, Stop Driving Immediately
- Amber/Yellow Warning Lights, Diagnose Soon
- Mazda-Specific Lights (i-stop, DSC, i-ACTIVSENSE)
- Green & Blue Indicator Lights (Informational)
- What to Do When a Light Comes On (Decision Flow)
- How Much It Costs to Diagnose
- Frequently Asked Questions
- Sources & References
How Mazda 6 Dashboard Lights Work (Color Logic)
Mazda uses the standard three-tier colour system on the Mazda 6:
- Red = danger. A system is failing or about to cause damage. Pull over safely and stop the engine.
- Amber/Yellow = caution. The car is still drivable but needs attention soon.
- Green/Blue = informational. A feature is on, such as headlights, cruise, or i-stop. No action needed.
The Mazda 6 has a Master Warning Light (a triangle with an exclamation mark) that pairs with a message in the display, always read that message, since the triangle just points to the real fault. Mazda also uses DSC (Dynamic Stability Control) as its name for stability control. A flashing check engine light means an active misfire, treat it like a red light.

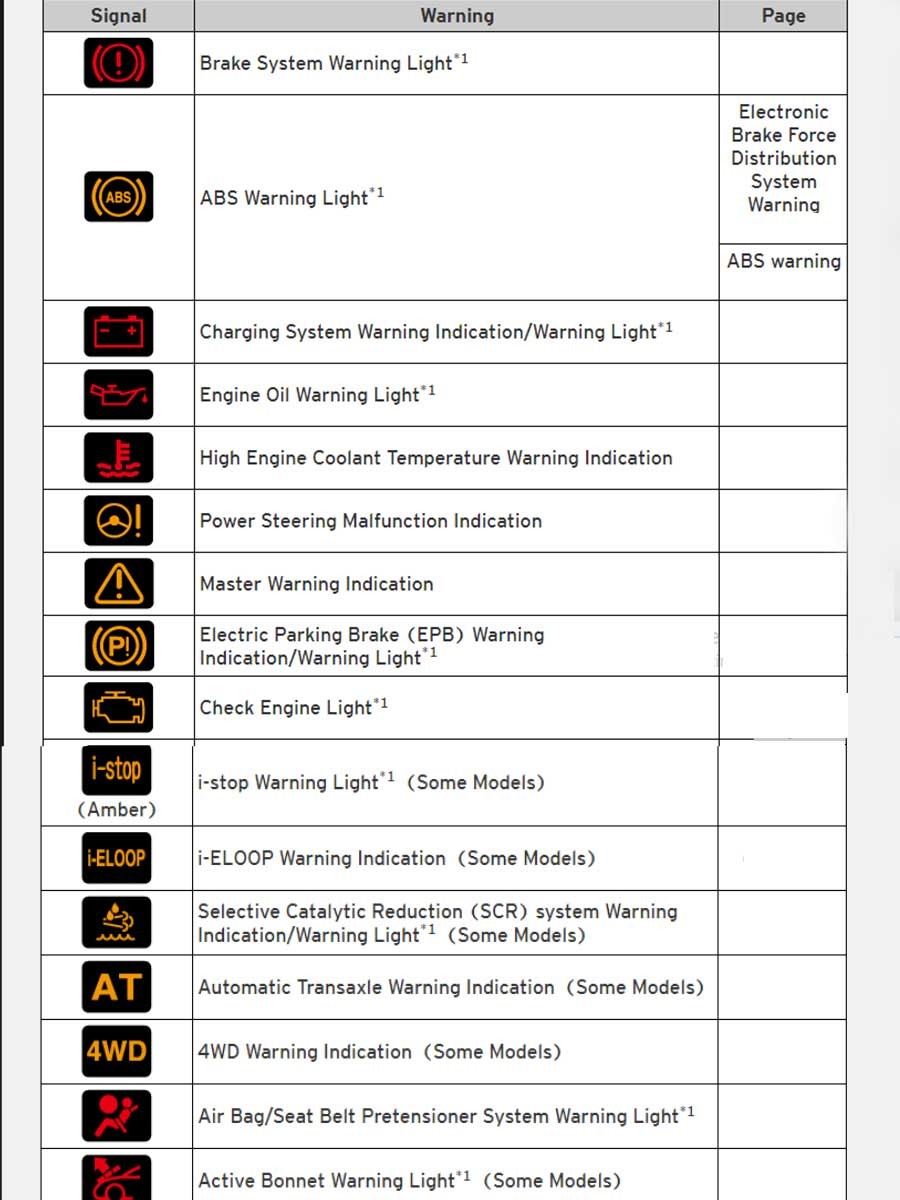

Complete Mazda 6 Warning Light Table
| Symbol | Name | Color | Severity | What It Means | Action |
|---|---|---|---|---|---|
| Thermometer in liquid | Engine Coolant Temp | Red | Stop now | Engine overheating | Pull over, stop, let cool 20+ min |
| Oil can with drip | Oil Pressure | Red | Stop now | Low oil pressure | Stop, check oil, do not restart if low |
| Battery | Charging System | Red | Stop now | Alternator not charging | Reduce load, drive to shop now |
| (!) in circle / BRAKE | Brake System | Red | Stop now | Parking brake, low fluid, or fault | Release brake; check fluid; tow if needed |
| Triangle with (!) | Master Warning | Red/Amber | Read message | Points to a fault in the display | Read the display text and act on it |
| Engine outline | Check Engine | Amber | Diagnose soon | Emissions/engine fault | Tighten fuel cap first; scan if it stays on |
| Engine outline flashing | Active Misfire | Amber flashing | Stop now | Misfire damaging catalytic converter | Reduce speed and load, shop today |
| Car skidding (DSC) | Stability (DSC) | Amber | Info/diagnose | DSC active or fault | Flashing = normal; steady = scan |
| DSC OFF / TCS OFF | Stability/Traction Off | Amber | Info | System switched off | Re-enable for normal driving |
| ABS in circle | Anti-Lock Brakes | Amber | Diagnose soon | ABS disabled, base brakes work | Drive carefully, get it checked |
| Steering wheel with (!) | EPS Power Steering | Amber | Diagnose soon | Electric power steering fault | Steering may go heavy; diagnose soon |
| Tire with (!) | Tire Pressure (TPMS) | Amber | Check soon | One or more tires low | Inflate to placard spec |
| Person with airbag | SRS Airbag | Amber | Diagnose soon | Airbag fault | Get it diagnosed |
| i-stop (A in circle) | Auto Idle Stop | Green/Amber | Info | Stop-start status | Amber = temporarily unavailable |
| Fuel pump | Low Fuel | Amber | Refuel soon | Low fuel level | Refuel soon |
| Headlight beams | Low Beam | Green | Info | Headlights on | Normal |
| Headlight with lines | High Beams | Blue | Info | High beams on | Dim for oncoming traffic |
| Arrows | Turn Signal | Green | Info | Signal active | Normal |
Red Warning Lights, Stop Driving Immediately
Engine Coolant Temperature
The red thermometer means the engine is overheating. Pull over, switch off, and wait 20 to 30 minutes before opening any cap. Top up with the correct Mazda long-life coolant if low. If the light returns after topping up, do not drive.
Oil Pressure
The red oil can means low oil pressure. Stop the engine, wait five minutes, and check the dipstick (Skyactiv-G engines use 0W-20). Top up if low. If the level is normal but the light stays on, do not restart.
Charging System
The red battery means the alternator is not charging. On i-ELOOP-equipped cars, charging also involves the regenerative system, but the response is the same: switch off accessories and drive directly to a shop.
Brake System (Red)
Check the handbrake, then the brake fluid. A soft pedal with the red brake light means a leak, do not drive.
Amber/Yellow Warning Lights, Diagnose Soon
Check Engine Light
The amber engine outline covers emissions and engine faults. A loose fuel cap is a common harmless cause, so tighten it and drive for a day. If it stays on, scan the codes. A flashing light is an active misfire, get to a shop the same day.
DSC (Stability) and ABS
The DSC light flashing during driving is normal, it means stability control is working on a slippery surface. A steady DSC light, or DSC with the ABS light, points to a fault, often a wheel-speed sensor. Your normal brakes still work with the ABS light on. If you pressed DSC OFF or TCS OFF, simply switch it back on.
EPS (Electric Power Steering)
The steering-wheel icon means the electric power steering has a fault, and the steering can feel heavy. The car is still controllable, but get it diagnosed promptly.
Tire Pressure (TPMS)
A low-tire warning means at least one tire is below the placard pressure. Inflate all four and run the TPMS set procedure if equipped.
Mazda-Specific Lights (i-stop, DSC, i-ACTIVSENSE)
i-stop (auto idle stop). When the “A” symbol shows green, the system is ready and will shut the engine off at a standstill to save fuel. An amber i-stop light means stop-start is temporarily unavailable, usually normal when the battery charge is low, the engine is cold, or the cabin is still heating or cooling. If i-stop never works, the battery is the usual cause, the system needs a healthy battery to restart the engine.
DSC and TCS. DSC is Dynamic Stability Control and TCS is the traction control system; their lights relate to grip and stability, not the engine. Re-enable them if you switched them off.

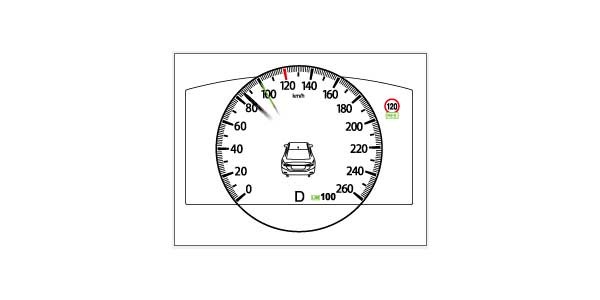

i-ACTIVSENSE safety systems. On equipped cars, warnings for the radar/camera-based features (blind spot, lane keep, smart braking) often mean a sensor is blocked by dirt, snow, or ice. Clean the sensors and camera area first; if a warning persists, the system needs a scan.
Master warning triangle. Always read the accompanying message in the display, it names the actual fault.
Green & Blue Indicator Lights (Informational)
- Green headlight icon: low beams on.
- Blue headlight icon: high beams on. Dim for oncoming traffic.
- Green arrows: turn signal or hazards.
- Green i-stop “A”: auto idle stop is ready.
- Green cruise / SET: cruise control active.
What to Do When a Light Comes On (Decision Flow)
- Is it red? Pull over within the next minute and switch off. Check the relevant fluid once cool. Do not drive if a red light returns after topping up.
- Is it the master triangle? Read the message in the display, it names the real fault.
- Is it the check engine light and flashing? Active misfire, get to a shop today.
- Is it amber and steady (ABS, DSC, EPS, TPMS, airbag)? Note it and schedule diagnosis within the week.
- Is the i-stop light amber? Usually normal; if stop-start never works, have the battery tested.
- Is it green or blue? No action.
How Much It Costs to Diagnose
| Service | DIY Cost | Shop Cost (US avg) | Time |
|---|---|---|---|
| OBD2 code scan | $25-50 (scanner) | Free at parts stores; $80-150 at shop | 5-15 min |
| Fuel cap replacement | $15-30 | $30-60 | 2 min |
| 12V battery (i-stop spec) | $130-220 | $180-300 | 30 min |
| Wheel speed sensor (ABS) | $30-80 (part) | $150-300 | 30-60 min |
| EPS diagnosis | – | $90-160 | 30-60 min |
| Coolant leak diagnosis | – | $90-160 | 30-90 min |
| Brake fluid top-up | $7 (fluid) | $20-40 | 5 min |
Cost ranges are US averages from RepairPal and owner data. Note that i-stop vehicles use a specific battery; using the correct battery matters for the stop-start system to work.
Frequently Asked Questions
Q: Why is the i-stop light amber on my Mazda 6?
A: An amber i-stop light means the auto idle-stop system is temporarily unavailable. This is usually normal and happens when the battery charge is low, the engine is cold, or the cabin is still heating or cooling. If i-stop never works at all, the most common cause is a weak or wrong battery, since the system needs a healthy battery of the correct specification to restart the engine reliably.
Q: What does the DSC light mean on a Mazda 6?
A: DSC stands for Dynamic Stability Control, Mazda’s stability system. The DSC light flashing while driving is normal, it shows the system is actively maintaining grip on a slippery surface. A steady DSC light, or DSC together with the ABS light, indicates a fault, commonly a wheel-speed sensor, that should be scanned. If you pressed DSC OFF, just switch it back on.
Q: My Mazda 6 master warning triangle is on. What is it?
A: The triangle is a pointer, not a specific fault. It pairs with a message in the multi-information display that names the actual issue, anything from a door ajar to a system fault. Read that message and act on it; the urgency depends on what it says. Do not ignore it just because the car still seems to drive normally.
Q: Is it safe to drive my Mazda 6 with the ABS light on?
A: Yes, carefully. Your normal brakes still work, so stopping distance is unaffected in routine driving. You only lose anti-lock protection during a hard, panic stop. The most common cause is a dirty or failing wheel-speed sensor, so have it scanned and repaired soon, especially before winter driving.
Q: Why is my Mazda 6 steering suddenly heavy with a warning light?
A: The steering-wheel icon is the electric power steering (EPS) warning, and it means the assist system has a fault, which can make the wheel feel much heavier. The car is still controllable, but get it diagnosed promptly. Sometimes a low battery or a connector issue triggers it rather than a failed steering motor.
Sources & References
- Mazda Motor Corporation, 2013-2021 Mazda 6 Owner’s Manuals
- Mazda service information on i-stop, DSC, and i-ACTIVSENSE systems
- NHTSA complaint database for the Mazda 6 (nhtsa.gov)
- RepairPal average repair cost estimates for the Mazda 6
- OBD-II code definitions per SAE J2012
